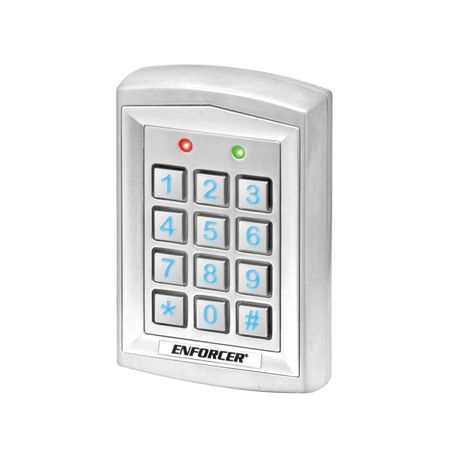

This robust access control keypad operates on 12~24V AC/DC and offers versatile functionality for secure entry management. It supports up to 1,010 users across two distinct outputs: Output #1 for 1,000 users and Output #2 for 10 users, which can also be configured for doorbell use. Featuring 2 Form C relays with 1A @ 30V DC rating each, the keypad allows programmable output times from 1 to 99 seconds or toggle mode. Its design includes backlit keys for nighttime visibility, two multi-colored status LEDs for clear operational feedback, and is suitable for outdoor use with an IP65 weatherproof rating and rugged aluminum construction. Programming is straightforward directly from the keypad, leveraging EEPROM memory to retain settings during power loss, while an optical tamper enhances security.
Works with PDKTM.
SL-SK-1323-SDQ |
---|
4-3/4" x 3" x 7/8" (120 x76x22 mm) |
-4°~122° F (-20°~50° C) |
12~24V AC/DC |
1-lb 2-oz (510g) |
Dimensions (W x H x D) |
Operating Temperature |
Voltage |
Weight |
Information on the warranty coverage for this item is found on the manufacturer’s website. Snap One may assist you with a return in accordance with our Return Merchandise Authorization process found here, in so far as the process is in accordance with the manufacturer’s warranty. Specific warranty terms and details from the manufacturer are below.
