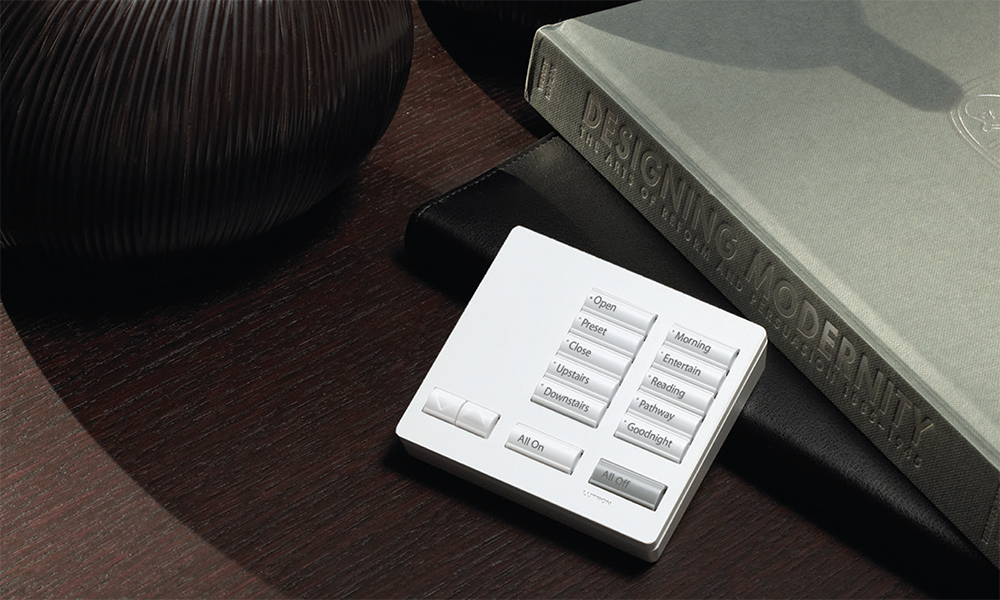

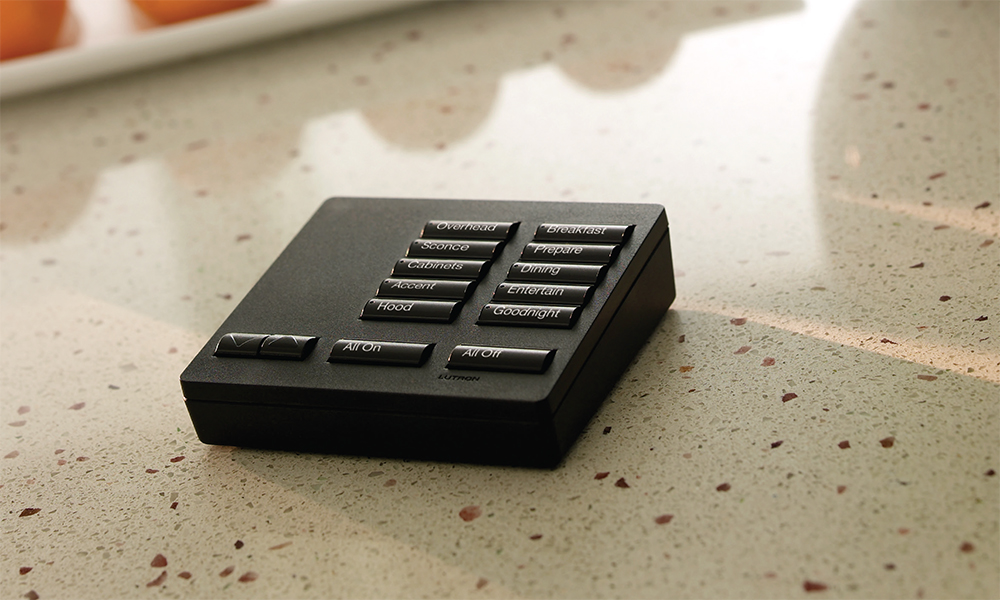

RadioRA 2 Tabletop Designer Keypads provide homeowners with a simple and elegant way to operate lights, shades, draperies, motorized screens, and many other devices. Features large, easy-to-use buttons, plus a unique backlit engraving option that makes the keypads readable for your clients, any time of the day or night. The versatile design of RadioRA 2 Tabletop Designer Keypads allows them to be mounted on a wall, placed on top of a table, or used as a cordless keypad. These Keypads can be powered by a DC adapter or with 2 AAA batteries.
RadioRA 2 Tabletop Designer Keypads provide homeowners with a simple and elegant way to operate lights, shades, draperies, motorized screens, and many other devices. Features large, easy-to-use buttons, plus a unique backlit engraving option that makes the keypads readable for your clients, any time of the day or night. The versatile design of RadioRA 2 Tabletop Designer Keypads allows them to be mounted on a wall, placed on top of a table, or used as a cordless keypad. These Keypads can be powered by a DC adapter or with 2 AAA batteries.
Features Lutron's Clear Connect- Type A Radio Frequency; must be located within 30 ft (9 m) of a processor or repeater for RF
Powered by a DC adapter or with 2 AAA batteries (DC adapter and 2 AAA batteries included)
Adjustable backlight intensity and can be programmed to control the whole house or individual lights (RadioRA 3 Processor required)
Mount on a wall, place on top of a table, or used as a cordless Keypad; mounting bracket included
Ra 2 Table Top Keypads include one redeemable credit for a single custom personalized replacement button kit through Lutron
Backwards Compatible: RadioRA 2 and RadioRA 2 Select systems can be upgraded to RadioRA 3 (some device limitations apply) and RadioRa2 project files can be converted with one click
Works without Wifi; Local device operation will continue to function if internet connection is lost
Program scenes, schedules, and other system-controlled events with the Radio RA 3 All-in-One Processor (sold separately)

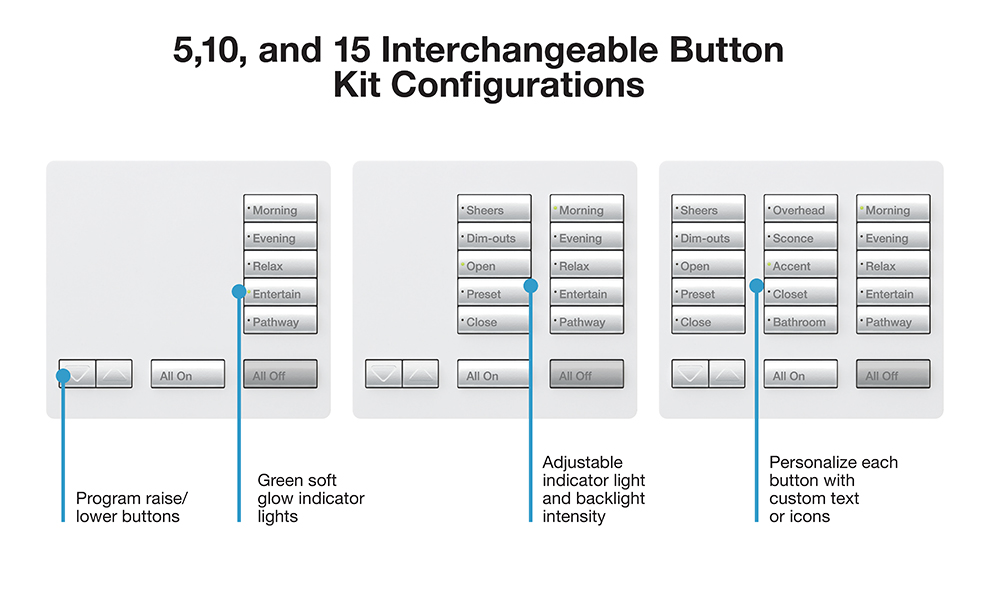

LUT-RR-T5RL-SW | LUT-RR-T10RL-SW | LUT-RR-T15RL-SW |
---|---|---|
Adapter Powered: 9 V 300 mA |
Adapter Powered: 9 V 300 mA |
Adapter Powered: 9 V 300 mA |
0.6 W |
0.6 W |
0.6 W |
cULus Listed / FCC certified / Industry |
cULus Listed / FCC certified / Industry |
cULus Listed / FCC certified / Industry |
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only. |
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only. |
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only. |
Mounting bracket included for optional wall mount applications. |
Mounting bracket included for optional wall mount applications. |
Mounting bracket included for optional wall mount applications. |

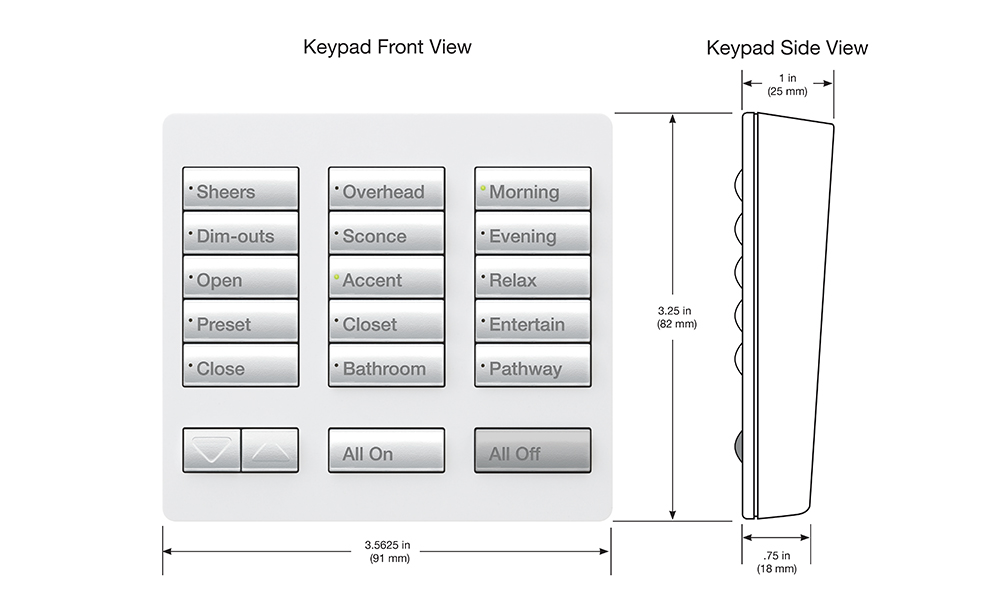

3 9/16" x 3 1/4" x 3/4-1" |
3 9/16" x 3 1/4" x 3/4-1" |
3 9/16" x 3 1/4" x 3/4-1" |
Power |
Power Consumption |
Regulatory |
Environmental |
Mounting |
Dimensions (W x H x D) |
Information on the warranty coverage for this item is found on the manufacturer’s website. Snap One may assist you with a return in accordance with our Return Merchandise Authorization process found here, in so far as the process is in accordance with the manufacturer’s warranty. Specific warranty terms and details from the manufacturer are below.
