High-quality solutions for the essentials you need for all your custom installs
Be heard with Audio-Technica mics and accessories. Experience simple setup, reliable sound performance, and superior voice capture.
.png)
Dedicated lighting wire. We handled the specification, freeing you to focus on other tasks
Strike the balance of performance and value. With user and installer features
Access Networks Unleashed Wi-Fi 6 Indoor Access Points and switches now feature a Limited Lifetime Warranty!
A decade's evolution starts a new era, enhanced with new features.
Enjoy zero transfer time to battery, longer run time, and advanced OvrC® features with our Online Double Conversion UPS.
Bring true 4K HDR entertainment to your customers with the latest laser light source projectors from Sony, offering crisp, vibrant HDR images, even in well-lit spaces.
New offerings from Elk Products include custom security and convenience solutions for homes and businesses.
Episode® Surroundscape™ Series Speakers offer a durable, easy-to-install, audio solution designed to handle harsh outdoor environments. They feature a quick-connect mounting system and integrated wiring block for simplified integration.
Keep customers connected in any space with outstanding outdoor solutions designed to make your jobs easier.
All the installation tools you'll need to terminate Cleerline fiber cable and connectors quickly and cleanly.
This low-profile, motorized, bullet IP camera features 4MP resolution for 2K viewing. This low-profile, motorized, turret IP camera features 4MP resolution for 2K viewing. Reduce false notifications and easily highlight and access key moments with built-in intelligent analytics. Using Starlight, the camera can provide crisp nighttime images in low-light environments. With OvrC, on-site or remote configuration is a breeze, no longer requiring you to tediously navigate each camera’s local UI. Adjust image settings in real-time, setup recordings, and more all via OvrC. Control System integration is always top of mind, and this camera is packed with features for Control4 along with many other popular control systems.
This low-profile, motorized, bullet IP camera features 4MP resolution for 2K viewing. This low-profile, motorized, turret IP camera features 4MP resolution for 2K viewing. Reduce false notifications and easily highlight and access key moments with built-in intelligent analytics. Using Starlight, the camera can provide crisp nighttime images in low-light environments. With OvrC, on-site or remote configuration is a breeze, no longer requiring you to tediously navigate each camera’s local UI. Adjust image settings in real-time, setup recordings, and more all via OvrC. Control System integration is always top of mind, and this camera is packed with features for Control4 along with many other popular control systems.
Featuring the latest AI technology like advanced human, vehicle, and non-motor vehicle detection, as well as AI-filtered events, you can reduce false notifications and have your customers more accurately respond to them. With AI-filtered events, your customers can quickly be notified, share, and view key moments their system finds throughout the day. With Luma, you can focus on the events that matter the most!
Luma View gives your clients intuitive access to their surveillance system with push notifications, lightning-fast video viewing, easy access to share and view recordings, 16 channel synchronous playback, activity highlights with AI-filtered events, and more. Luma cameras also allow for remote customer handoff to the end-user with a Luma View app invitation through OvrC.
Configuring cameras one-by-one via a local UI can be a long process. With Luma, OvrC enables you to fully deploy and configure an entire Luma system in a fraction of the time! Adjust event and image settings in real-time using a live video feed set up, AI-filtered events, set up recordings, and more all from OvrC’s easy-to-use interface while still being able to use local UI for advanced settings. With OvrC you can save up to 50% in configuration time per camera! OvrC doesn’t just help with setup, use OvrC to remotely manage Luma systems from anywhere in the world.
Control system integration has never been better with Luma. The Control4 surveillance experience has been rebuilt from the ground up with Thumbnails, Single Camera view, enhanced PTZ Controls and camera settings management. Dynamic Camera URLs speed setup with autodetection of resolution, advanced triggering off AI events, and more. Control system integration is available with additional control systems as well.
Starlight improves nighttime performance by automatically adapting to changes in ambient light, resulting in a detailed color image and improved clarity in low-light conditions.
Once the camera is properly aimed, you don’t have to worry about adjusting the focus from the ladder. Our motorized varifocal lens can adjust the zoom and focus right from your computer or NVR, making installation a breeze.
For local recording and/or redundancy, take advantage of edge storage using a surveillance-rated SD card (not included) with support up to 256GB. Playback of these events are available in the Luma View app.

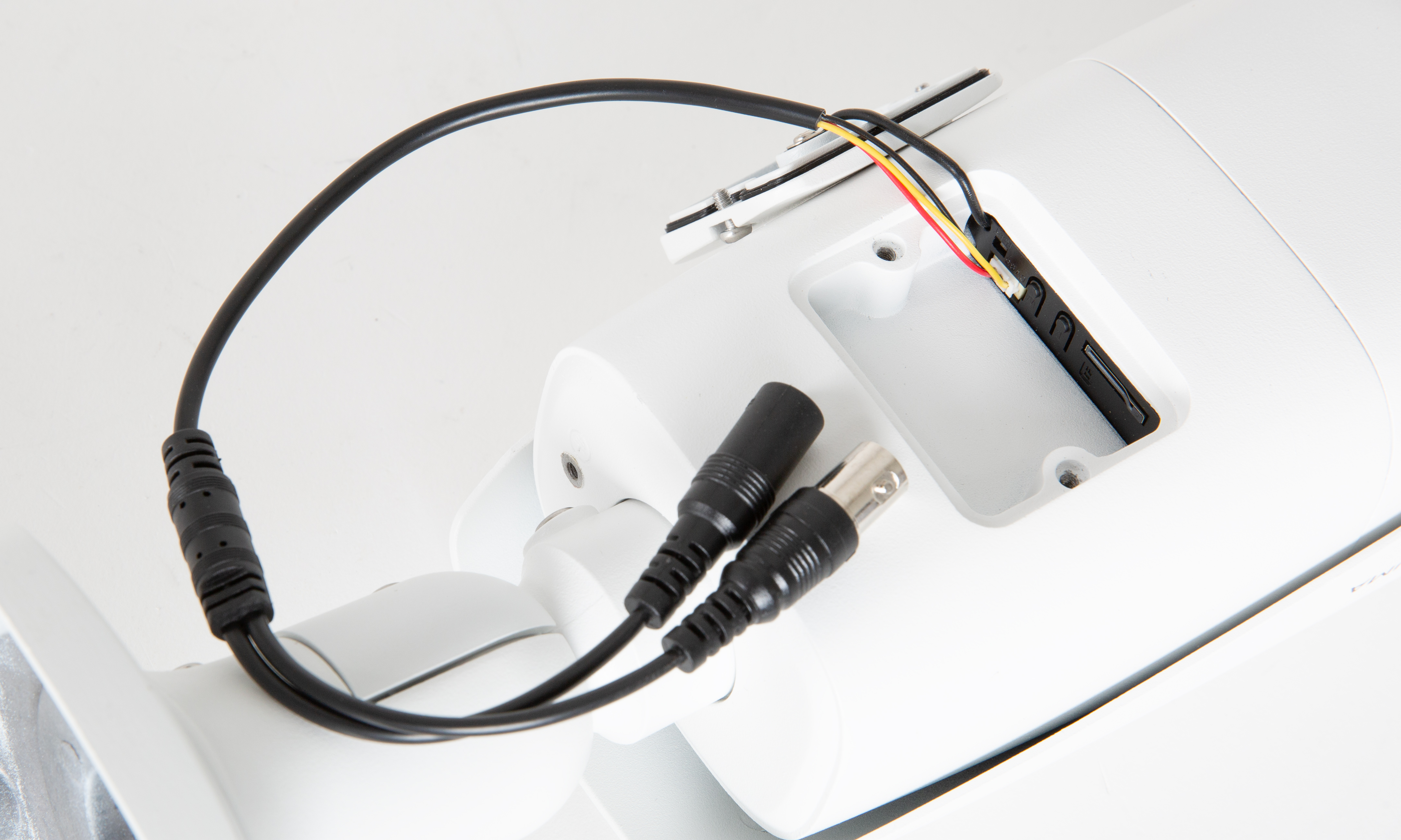

With the included test cable, you can power the camera and see what the camera sees with CCTV tester. This feature allows you to adjust the zoom in ratio and aim of the camera easily, getting you off the ladder as quickly as possible.
Get high quality video and sound with optional two-way audio. Have your customers clearly hear and communicate with anyone through the camera.
Alarm In enables the camera to receive notifications from another system, like a contact sensor. Set up cameras to record, send an email and/or take a snapshot after an Alarm In notification is received. Alarm Out enables the camera send notifications to another system, for example a relay to turn lights on when motion is detected.
We have you covered for any job that requires NDAA compliant equipment. All Luma X20 family surveillance solutions are fully NDAA compliant.
Luma cameras are fully ONVIF conformant to provide you even greater choice and flexibility when designing or updating systems. With ONVIF, you can easily identify specific interoperable features from access control and edge storage to door control and streaming video.
Low-profile housing provides a more discrete and aesthetically pleasing install for your clients.
| LUM-420-IP-BMB | LUM-420-IP-BMW |
|---|---|
IP67 |
IP67 |
Black |
White |
4MP (2560 x 1440 Resolution) |
4MP (2560 x 1440 Resolution) |
Max 30FPS |
Max 30FPS |
1s - 1/100000s |
1s - 1/100000s |
2.8 - 12mm |
2.8 - 12mm |
0.0014 lux, AGC ON; 0 lux with IR |
0.0014 lux, AGC ON; 0 lux with IR |
F1.5 |
F1.5 |
Horizontal: 109° - 46° Vertical: 74.5° - 27.1° |
Horizontal: 109° - 46° Vertical: 74.5° - 27.1° |
Pan: 0° - 360° Tilt: 0° - 90° Rotation: 0° - 360° |
Pan: 0° - 360° Tilt: 0° - 90° Rotation: 0° - 360° |
50 - 70m |
50 - 70m |
Yes |
Yes |
120dB |
120dB |
Yes |
Yes |
Yes |
Yes |
3D DNR |
3D DNR |
Motion, Line Crossing, Intrusion, Target Counting |
Motion, Line Crossing, Intrusion, Target Counting |
Human, Vehicle & Non-motor Vehicle Detection |
Human, Vehicle & Non-motor Vehicle Detection |
Yes |
Yes |
Yes |
Yes |
Main Stream: Up to 4MP H.265+ 2nd Stream: 704 x 480 H.264 3rd Stream: 704 x 480 H.264 4th Stream: 1920 x 1080 H.265, H.264, MJPEG |
Main Stream: Up to 4MP H.265+ 2nd Stream: 704 x 480 H.264 3rd Stream: 704 x 480 H.264 4th Stream: 1920 x 1080 H.265, H.264, MJPEG |
No |
No |
Yes, up to 256GB |
Yes, up to 256GB |
1 Channel / 1 Channel |
1 Channel / 1 Channel |
1/1 |
1/1 |
PoE, IEEE802.3af |
PoE, IEEE802.3af |
Yes (Pigtail & Test Port) |
Yes (Pigtail & Test Port) |
Chrome, Firefox, Safari, Edge, IE Mode in Edge |
Chrome, Firefox, Safari, Edge, IE Mode in Edge |
DC12V/PoE, < 12.5W |
DC12V/PoE, < 12.5W |
IP67 |
IP67 |
ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance |
ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance |
-22 °F - 140°F (-30 °C - 60°C) |
-22 °F - 140°F (-30 °C - 60°C) |
278.3mm x 100.2mm x88.7mm |
278.3mm x 100.2mm x88.7mm |
Outdoor Rating |
Color |
Image Sensor |
Frame Rate |
Shutter Speed |
Lens |
Minimum Illumination |
Aperture |
Field of View |
Angle |
IR Range |
Smart IR |
WDR |
Backlight Compensation |
Highlight Compensation |
DNR |
Recording Trigger |
AI Event |
Motion Detection |
Image Snapshot |
Streams |
Microphone |
SD Card Support |
Audio Input Connectors |
Alarm Contact Inputs/Outputs |
Network / Ethernet Desc. |
CVBS Output |
Browser Support |
Power Consumption |
Protection Rating |
Certifications |
Operating Temperature |
Dimensions (W x H x D) |
Luma Surveillance products have a 3-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified, disassembled, or improperly installed. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
