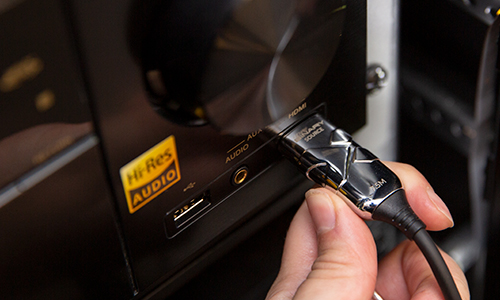

Binary's advanced BX HDMI cables feature 8K video with up to 48Gbps transmission speeds. Plus, they feature zinc metal heads and GripTek technology for a strong and durable connection. No matter your install, Binary has the best HDMI cable for the job!
Binary's advanced BX HDMI cables feature 8K video with up to 48Gbps transmission speeds. Plus, they feature zinc metal heads and GripTek technology for a strong and durable connection. No matter your install, Binary has the best HDMI cable for the job!
Binary BX cables provide dealers with the most advanced HDMI technology, delivering the latest video capabilities to their customers. The BX cables support 8K UHD @ 60Hz 4:2:0 and up to 10K @ 30 Hz 4:4:4. They’ll also display 4K @ 120Hz and 4K @ 60Hz 4:4:4 and handle transmission speeds up to 48Gbps.
Common cable-related service calls are easily prevented thanks to GripTek™, Binary's exclusive gripping technology. Retention points on the connector create a strong hold and require up to 8lbs. of pulling force to remove 40% more than a traditional HDMI connector!
Our BX series features premium Zinc alloy connector heads for added strength and durability, protecting the ends in tight spaces while ensuring connectivity when repetitive plugging and unplugging occur. Plus, we integrated a textured logo on the connector head for a better grip.
BX Series cables support high-resolution audio and video formats including Dolby® ATMOS, DTS™-X, and HDMI® 3D.
All Binary HDMI cables feature an ultra-pliable jacket that makes them extremely flexible. Its tighter bend radius and a low-profile connector can save valuable space behind equipment.
High-performance micro-electronics are integrated into each active connector head. These valuable chipsets automatically monitor and protect your signal to ensure reliable transmission – so you can send 8K @ 48Gbps signals up to 20M.
| BX-8K-4 | BX-8K-5 | BX-8K-7.5 | BX-8K-10 | BX-8K-15 | BX-8K-20 |
|---|---|---|---|---|---|
HDCP 1.4 and 2.2 |
HDCP 1.4 and 2.2 |
HDCP 1.4 and 2.2 |
HDCP 1.4 and 2.2 |
HDCP 1.4 and 2.2 |
HDCP 1.4 and 2.2 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
RoHS, UL Listed, CL2, CE |
RoHS, UL Listed, CL2, CE |
RoHS, UL Listed, CL2, CE |
RoHS, UL Listed, CL2, CE |
RoHS, UL Listed, CL2, CE |
RoHS, UL Listed, CL2, CE |
-4°F - 140°F |
-4°F - 140°F |
-4°F - 140°F |
-4°F - 140°F |
-4°F - 140°F |
-4°F - 140°F |
Each |
Each |
Each |
Each |
Each |
Each |
8K @ 60Hz 4:2:0 (up to 10K @ 30Hz 4:4:4) 4K 120Hz 4K 60Hz 4:4:4 |
8K @ 60Hz 4:2:0 (up to 10K @ 30Hz 4:4:4) 4K 120Hz 4K 60Hz 4:4:4 |
8K @ 60Hz 4:2:0 (up to 10K @ 30Hz 4:4:4) 4K 120Hz 4K 60Hz 4:4:4 |
8K @ 60Hz 4:2:0 (up to 10K @ 30Hz 4:4:4) 4K 120Hz 4K 60Hz 4:4:4 |
8K @ 60Hz 4:2:0 (up to 10K @ 30Hz 4:4:4) 4K 120Hz 4K 60Hz 4:4:4 |
8K @ 60Hz 4:2:0 (up to 10K @ 30Hz 4:4:4) 4K 120Hz 4K 60Hz 4:4:4 |
48Gbps |
48Gbps |
48Gbps |
48Gbps |
48Gbps |
48Gbps |
CEC, ARC, Dolby Atmos |
CEC, ARC, Dolby Atmos |
CEC, ARC, Dolby Atmos |
CEC, ARC, Dolby Atmos |
CEC, ARC, Dolby Atmos |
CEC, ARC, Dolby Atmos |
4m/13.1 ft |
5m/16.4 ft |
7.5m/25 ft |
10m/32.8 ft |
15m/49.2 ft |
20m/65.6 ft |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
HDCP Compliance |
ESD Protection |
Certifications |
Operating Temperature |
Sold As |
Video Resolution |
Bandwidth |
Supports |
Length |
HDMI GripTek |
This Binary™ product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
