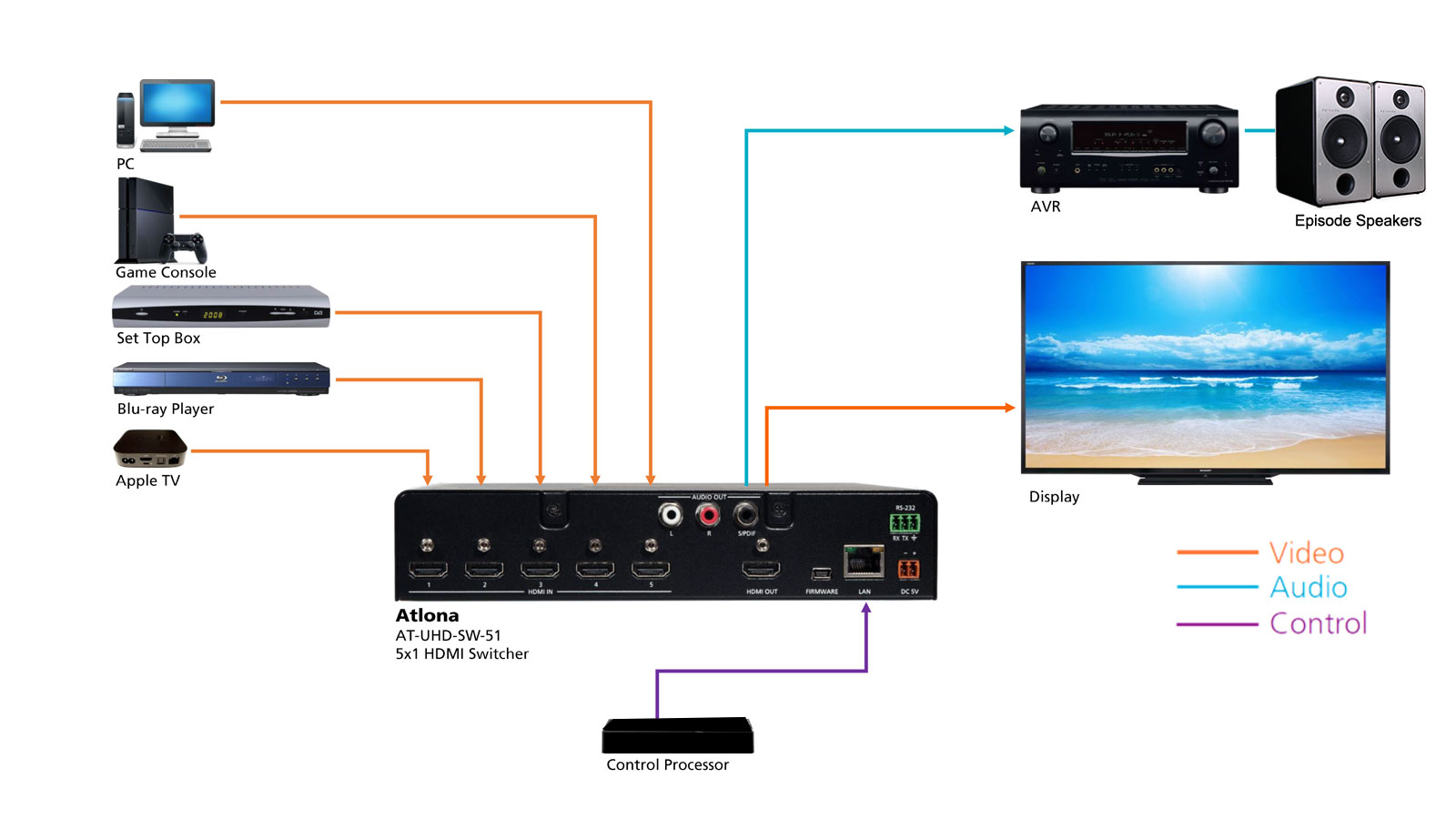

Designed as a cost-effective, easy to install solution for heavy-duty residential or commercial installations, the Atlona AT-UHD-SW-51 is a 5x1 HDMI switcher with auto-switching and advanced control capability. It supports 4K @ 60Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth.
Designed as a cost-effective, easy to install solution for heavy-duty residential or commercial installations, the Atlona AT-UHD-SW-51 is a 5x1 HDMI switcher with auto-switching and advanced control capability. It supports 4K @ 60Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be a standalone switcher, but also offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232 or TCP/IP-based control systems. Audio features include de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD® and DTS-HD Master Audio™; plus an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with the 19” rack mount brackets; or, you can mount two units side-by-side.
The SW-51 adds 4K UHD performance to Atlona’s HDMI small switcher family. Now, this switcher meets the needs of displays and sources with resolutions beyond 1080p, up to 4K@60Hz 4:2:0 and HDCP 1.4. It’s compatible with Ultra High Definition sources and displays, and easily handles high-resolution applications like CAD, desktop publishing, or detailed financial reporting. Please note: this switcher does not support HDCP 2.2 devices.
Via HDMI and ARC technology, you can now use the same cable to return audio from the remote display to the S/PDIF or analog audio outputs. ARC-enabled smart TVs transmit audio back to an AV receiver through a single HDMI input cable.
Using hot-plug-detect and video detection technology, this switcher automatically selects the active input when sources are connected or if there is a change in source power status. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.
In order to reduce integration time and costs, this switcher includes a variety of flexible control options compatible with 3rd-party control systems, including TCP/IP, RS-232, IR, and more. Overall control system neutrality also allows you to save significant install time.
Because this switch manages EDID communications between a source and destination, it allows integrators to force sources to preferred resolutions. Desired audio formats and video resolutions are now provided to the AV system, eliminating the need for a separate EDID management device.
Switch HDCP compliance on/off in order to use this switcher with non-compliant displays, streaming devices, and codecs. This feature enables non-protected material from PCs to be passed to non-compliant displays and teleconference systems, while protected content stays safe and is not transmitted.
Using an integrated web server, this switcher offers a menu-based configuration of network settings so you can configure internal product settings fast in the field. Customize RS-232 settings, input switching, EDID, HDCP management and audio from any device; this switcher allows you to configure or troubleshoot settings from a tablet, smartphone, or PC.
We offer a wide range of communication equipment—including switchers, receivers, transmitters, converters, and more—that work together to create fully-integrated commercial conferencing solutions.
| AT-UHD-SW-51 |
|---|
Switchable – Compliant/Non compliant
Supports up to HDCP 1.4 (Does not
support HDCP 2.2 devices) |
8-bit, 10-bit, 12-bit Color Space: YUV, RGB Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0* |
S/PDIF: PCM 2Ch, Dolby Digital, DTS 5.1 L/R Audio:maximum analog output: balanced +5dBu @ 0dBfs, 2Ch PCM only |
Firmware: Mini-B USB HDMI: Type A Digital Audio: S/PDIF Analog Audio: L/R RCA LAN: RJ45 (8P8C), TCP/IP control RS-232: 3-pin captive screw |
8.75" x 1.73" x 10.28" |
20 to 90% non-condensing |
32°F to 122°F |
5.94W |
4°F to 140°F |
1.4 lb |
4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60
Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby
Digital, DTS 5.1, Dolby Digital+, Dolby
TrueHD, DTS-HD Master Audio |
2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480 |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
Pass through |
AC100~240V 50/60Hz |
DC 5V/3.6A |
HDCP Compliance |
HDMI Max Color Depth |
Audio Output Connectors |
Connectors |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Power Consumption |
Storage Temperature |
Weight |
Supported Resolutions |
HDMI |
VESA Resolution |
Supported Sample Rates |
CEC |
Power Input |
Power Output |
