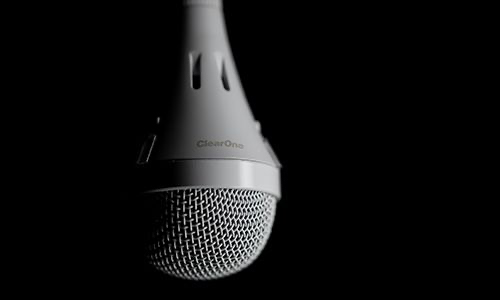

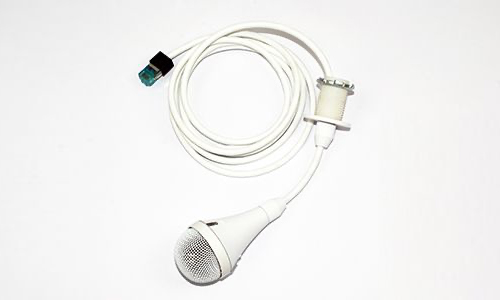

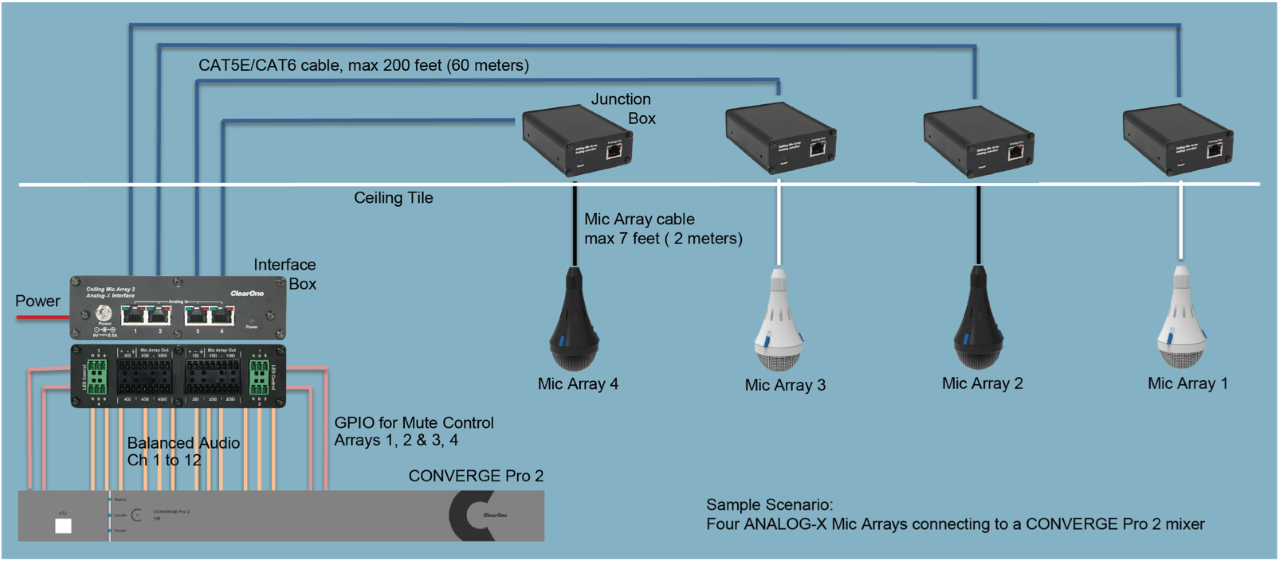

The Ceiling Microphone Array Analog-X is the most advanced tri-element ceiling microphone array for conferencing and sound reinforcement applications. Flexible and easy to use, Ceiling Mic Array is 100% RF immune, optimized for speech-intelligibility, and can daisy-chain for easy installation. It is a perfect companion to all our DSP mixers, as well as any 3rd party DSP mixers.
The Ceiling Microphone Array Analog-X is the most advanced tri-element ceiling microphone array for conferencing and sound reinforcement applications. Flexible and easy to use, Ceiling Mic Array is 100% RF immune, optimized for speech-intelligibility, and can daisy-chain for easy installation. It is a perfect companion to all our DSP mixers, as well as any 3rd party DSP mixers.
| C1-MIC-ANALOG-X-WH |
|---|
70 Hz – 20 kHz |
FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated) |
Element: Condenser (Electret) Max Sound Pressure Level: 120 dB SPL RF Immunity: 100% immunity, fully balanced twisted pair throughout |
41º to 104º F (5º to 40º C) |
Mic Capsule: 6 oz (170 g) Analog-X Interface: 13 oz (370 g) Analog-X Junction: 6.5 oz (185 g) |
74 dBA @ 1 kHz |
200 Ω |
-37dB @ 1 kHz (0 dB = 1V / Pa) |
3 X 120° Cardioid Patterns, covering 360° |
9Vdc @ 0.5A |
Frequency Response |
Certifications |
Features |
Operating Temperature |
Weight |
Signal to Noise Ratio |
Nominal Impedance |
Sensitivity |
Polar Pattern |
Power Features |
We want to make our Third-Party Partner program as easy as possible. That is why we process all claims directly without any third party telephone tag. Specific warranty terms and details from the manufacturer are listed below.
ClearOne® warrants that this product is free of defects in both materials and workmanship for a period of time, from the date of purchase, of duration as ClearOne has announced for particular products. Should product be defective, the Manufacturer agrees, at its option, to repair or replace the product or any defective component free of charge as defined in the ClearOne RMA-Product Return Policy. If neither repairing nor replacing the product is reasonably available, ClearOne may, at its sole discretion, refund the purchase price paid for the defective product.
