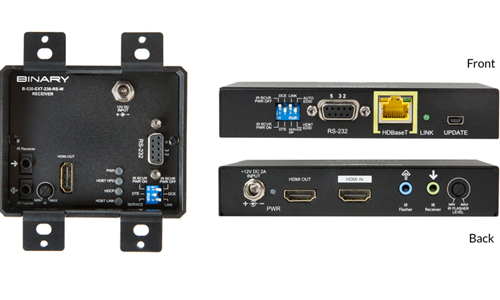

This mighty Binary™ HDMI Extender goes the distance – transmitting HDMI signals up to 230 feet over a single Cat 5e/6 cable. Save valuable install time thanks to bi-directional Power over Cable (PoC), which eliminates the need to fit a bulky power supply behind the TV, and “plug and play” technology that bypasses frustrating EQ settings.
This mighty Binary™ HDMI Extender goes the distance – transmitting HDMI signals up to 230 feet over a single Cat 5e/6 cable. Save valuable install time thanks to bi-directional Power over Cable (PoC), which eliminates the need to fit a bulky power supply behind the TV, and “plug and play” technology that bypasses frustrating EQ settings. And say goodbye to clock stretching issues. An embedded circuit ensures that communication between the extender and cable box is crystal clear. For the icing on the cake, you get robust control system integration that includes bi-directional IR and RS-232. Note: The receiver is an in-wall version and fits in dual gang wall plate.
This extender features an embedded circuit that solves clock stretching issues, when HDBaseT extenders are paired with some cable boxes.
This extender offers full support of HDMI® with 3D, Deep Color (36bit) and HDCP 1.4, as well as support for Dolby® True HD, Dolby® Digital Plus, DTS™-HD Master and LPCM audio formats.

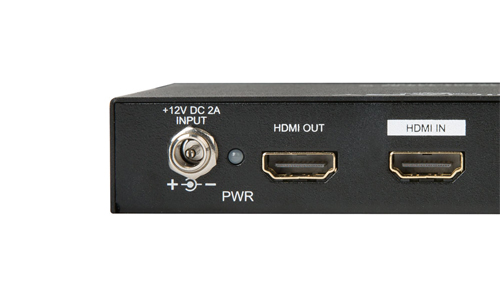

To make things easier for you, we’ve included output for HDMI at the transmitter, eliminating the need for an external splitter device.

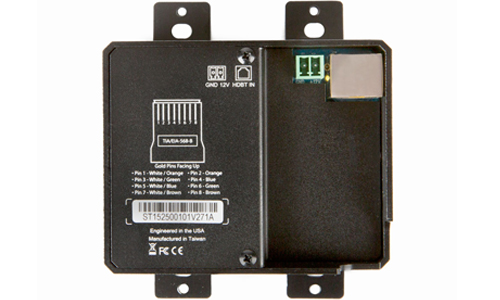

The extender pair comes with Power over Cable (POC), meaning the extender can be powered from either side. There’s also an option for remote powering. If there's no outlet near your receiver, you can remotely power the extender. Everything you need is in the box, so just add a 16- or 18-gauge 2-conductor wire, and you're ready to go. The power supply can easily go in a rack or other out-of-the-way place.
Thanks to bi-directional IR and RS-232, you get no-hassle integration with a variety of control systems, and you can easily send IR signals from the TV location back to cable boxes, DVD players, and other source equipment at the head end. The IR connections feature active circuitry that supports a wide variety of IR and control system types.

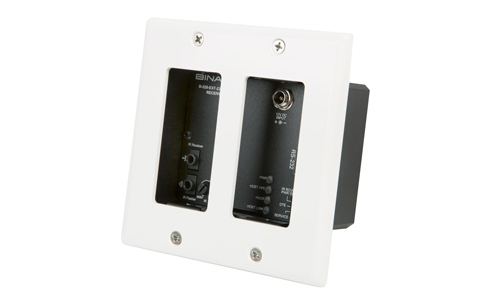

Having more options is never a bad thing. That’s why this wall plate receiver is specifically designed to fit any dual-gang J-box. It comes with a basic white decora plate, but you can swap it out for whatever color matches the install.
The dip switch gives you better install flexibility by providing power when connected to an IR receiver or by shutting off when connected to control systems.
You never know when a new TV or BluRay player is going to throw you a curve ball. Upgradable firmware gives our software team the ability to update the system to handle any issues. Just flip the switch on the RS-232 port and upgrade on-site.
Intelligent circuit design, perfected through extensive hardware testing, has resulted in a robust product with excellent ESD and surge protection that exceeds CE Level 3 standards. During development, every connection was tested with an ESD gun and a lightning simulator. They were hit with ESD at 15KV and surges up to 1600V.
| B-520-EXT-230-RS-W |
|---|
1U |
Ultra HD 4K2K@30 Hz (4:2:0) : 114 ft (Cat5e/6), 131 ft (Cat6a/7) |
Full HD 1080p 36-bit deep color: 200 ft (Cat5e/6), 230 ft (Cat6a/7) Full HD 1080p 24-bit color: 200 ft (Cat5e/6), 230 ft (Cat6a/7) 1080i/720p 24-bit color: 200 ft (Cat5e/6), 230 ft (Cat6a/7) |
HDMI 3D |
Yes |
10.2 Gbps |
1.2 Volts (peak-to-peak) |
5 Volts (peak-to-peak, TTL) |
(1) Human body model — ±5kV (air-gap discharge) &
±8kV (contact discharge) (2) Core chipset — ±8kV |
Carrier frequency: 20-60kHz |
Transmitter: 1x RJ45 Receiver: 1x RJ45 |
Transmitter: 1x HDMI Type A(19-pin female) Receiver: 1x HDMI Type A(19-pin female) |
Transmitter: 3.5mm Stereo/Mono Receiver: 3.5mm Stereo/Mono |
Transmitter: 1x 3.5mmMono Receiver: 1x 3.5mmMono |
Transmitter: DB-9 Receiver: DB-9 |
IR RCVR PWR OFF/ON |
RS-232 Pin Configuration (DCE /DTE) |
RS-232 Operation Mode (SERVICE/LINK) |
EDID – HDBT EDID/AUTO EDID |
Transmitter: 6.25" x 3.1" x 1.3" Receiver: 3.48" x 2.8" x 0.66" |
1.1 lb |
12V DC, 2A |
12W (max) |
32-104° |
-4 - 140°F |
CE, FCC, RoHS |
Rack Spacing |
Transmission Distance - 4K/Ultra HD |
Transmission Distance - HD |
HDMI Compliance |
HDCP Compliance |
Supported Video Bandwidth |
Input TMDS Signal |
Input DDC Signal |
ESD Protection |
IR Signal Frequency |
HDBaseT Connections |
HDMI Connections |
IR Receivers |
IR Flashers |
RS-232 Ports |
DipSwitch 1 Controls |
DipSwitch 2 Controls |
DipSwitch 3 Controls |
DipSwitch 4 Controls |
Dimensions (W x H x D) |
Weight |
Line Voltage |
Power Consumption |
Operating Temperature |
Storage Temperature |
Certifications |
This Binary™ product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
