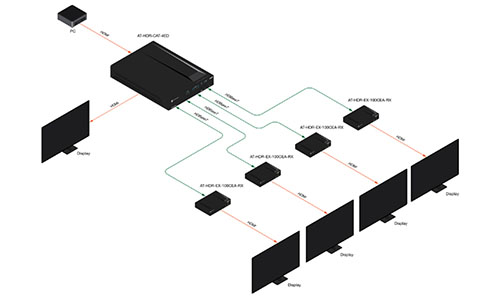

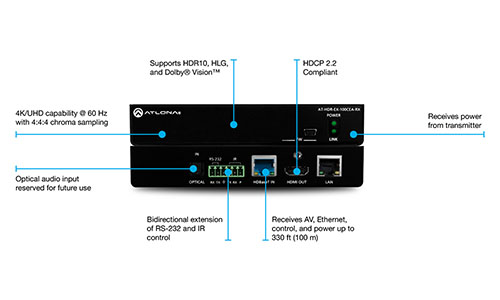

The Atlona AT-HDR-EX-100CEA-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports 4K/UHD video extension @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable. The HDR-EX-100CEA-RX is ideal for use with the AT-HDR-CAT-4ED distribution amplifier for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.
The Atlona AT-HDR-EX-100CEA-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports 4K/UHD video extension @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable. The HDR-EX-100CEA-RX is ideal for use with the AT-HDR-CAT-4ED distribution amplifier for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.
| AT-HDR-EX-100CEA-RX |
|---|
Supports up to 2.2 |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X®, DTS® Digital Surround™ |
CAT5e/6 @ 4K - up to 35 meters/115 ft CAT6a/7 @ 4K - 40 meters/130 ft CAT5e/6 @ 1080p - up to 60 meters/200 ft HDMI IN/OUT @ 4K - up to 5 meters/15 ft HDMI IN/OUT @ 1080p - up to 10 meters/30 ft |
10.2 Gbps |
CE, FCC |
x1 Utility- Mini-B USB
X1 HDBaseT In - RJ45
x1 LAN - RJ45
HDMI Out - Type A
x1 RS-232/IR - 6-pin captive screw
X1 Optical In - TOSLINK |
5.74" x 1.02" x 3.81" |
20 to 90% non-condensing |
32°F to 122°F |
10.4W |
-4°C to 140°F |
.87 lb |
4096x2160@60/50/30/25/24Hz
3840×2160@60/50/30/25/24Hz
1920x1080p@60/59.9/50/30/29.97/25/
24/23.98Hz 1920x1080i@30/29.97/25Hz
720p@60/59.94/50Hz 576p@50Hz 576i@25Hz 480p@60/59.96Hz 480i@30Hz |
2560×2048 2560×1600 2048×1536 1920×1200 1680×1050 1600×1200 1600×900 1440×900 1400×1050 1366×768 1360×768 1280×1024 1280×800 1280×768 1152×768 1024×768 800×600 640×480 |
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
up to 24-bit |
YUV, RGB |
4:4:4, 4:2:2, 4:2:0 |
8-bit, 10-bit, 12-bit |
Pass through |
Powered by compatible 48V transmitters |
HDCP Compliance |
Supported Formats |
Transmission Distance |
Supported Video Bandwidth |
Certifications |
Connectors |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Power Consumption |
Storage Temperature |
Weight |
Supported Resolutions |
VESA Resolution |
Supported Sample Rates |
Bit Rate |
Colorspace |
Chroma Subsampling |
Color Depth |
CEC |
PoE Consumption |
