Bring premium sound to your architectural speaker projects with Triad PDX, which combines easy-to-install Push Lock by Swarm technology with the industry-leading sound of Triad.
Bring premium sound to your architectural speaker projects with Triad PDX, which combines easy-to-install Push Lock by Swarm technology with the industry-leading sound of Triad. Triad PDX uses high-performance materials and the finest components like carbon fiber, Kevlar, Teteron, and dual voice coils. Furthermore, each speaker is designed and engineered in Portland, OR., with a full acoustic analysis in an anechoic chamber for the perfect audio experience. Installation is also a breeze with Push Lock by Swarm technology, an exclusive toolless mounting solution specifically designed for Snap One that delivers the industry's fastest and most secure installation.
Give your customers the ultimate audio experience with the ultimate install! Triad PDX features Push Lock by Swarm technology, a toolless mounting solution designed for Snap One. Push Lock secures the speaker with the simple press of a button for the fastest and most secure install on the market for both in-ceiling and in-wall speakers. Plus, the dogs cinch down an extra 6mm when you need additional security in situations with uneven sheetrock, popcorn ceilings, etc.
Triad PDX offers an exceptional solution for a seamless installation. Each speaker can be installed at once with zero tools, or you can remove the speaker and install the cradle with its optional backbox and grille, which allows you to return and place the speaker post-construction. All of this is done without compromising the industry-leading sound and build quality for which Triad is known.
All Triad PDX speakers have an optional rear enclosure that reduces sound propagation to adjacent rooms while providing a predictable environment for installation, giving your customers the very best custom audio experience.
Triad PDX speakers use top-shelf crossover components and are tuned like all other Triad speakers to give them their coveted Triad sound. They can even seamlessly integrate with other Triad speakers due to their Timbre matching, allowing you to mix and match speakers within the series to meet the needs of each room while providing identical tonal qualities throughout the home.
The high fiber count woven Carbon Fiber woofer's strength and responsiveness ensures stunning linear tonal balance, while the cone's PVA coating dampens resonance for higher sonic purity. A high excursion 1-1/4" voice coil allows increased motor stamina, heat reduction, improved power handling, and superior bass performance.

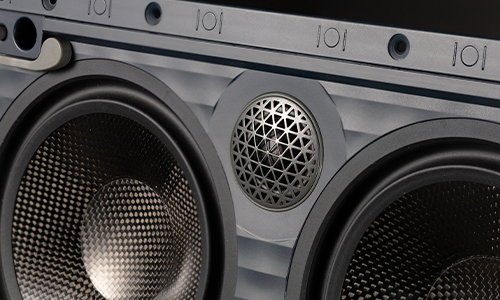

Everything about Triad PDX centers around the purest sound quality possible. The 1" pivoting Teteron dome tweeter with oversized surround increases the piston area to deliver higher sensitivity and smoother frequency response by reducing motion interference. Woofer vibration is eliminated by mounting the tweeter in a mechanically inert die-cast tweeter bridge - which can also be used as an installation handle for a safe and seamless install.
When used as a center channel, the IW64 LCR uses a Dialog enhancement switch to improve vocal clarity and dialog intelligibility.
Our new construction brackets offer enhanced flexibility during installation in new builds. They go in before the drywall, allowing the drywaller to cut holes for them and streamline the installation process.
Order your speaker with a standard Triad white speaker grille or, for a slight upcharge, order a custom-colored grille to match the room's décor or wall/ceiling color.
Not all job sites are secure during the construction phase, leaving components left onsite susceptible to theft. With The Triad PDX 2-piece baffle/speaker module assembly, you can remove the speaker module for safe storage offsite until the site is secure while the Frame/HVAC cover and grille remain installed.
| TS-PDX-IW64-LCR |
|---|
45Hz - 23KHz |
14.4 in. x 7.6 in. (366 x 193mm) |
15.32 in. x 8.56 in. (389 x 217mm) |
Dog Type: Push Lock by Swarm Dog Clamping Range: 3/8" to 1-1/8" |
-20C to +50C |
w/grille: 7.74lbs (3.52Kg) |
2.5kHz Crossover type/slope: Linkwitz-Riley / 12dB |
110° H / 90° V |
9.5 Ohms Minimal impedance: 8 Ohms |
(dB) @ 1W/1M: 90dB |
Size: 1" (25mm) Material: Teteron Dome Tweeter Mechanism: Pivoting +/- 12.7° |
Size: 6-1/2" (160mm) Cone Material: Carbon Fiber Surround Material: NBR (Buna-N rubber) Woofer Voice Coil Diameter: 1-1/4" Magnet type: Ferrite Woofer Excursion (Peak to Peak): 8.5mm |
w/ Enclosure: 3.8" (96.5mm) w/o Enclosure: 3.6" (91mm) |
20-25L |
TS-PDX-NCB-IWLCR6 |
TS-PDX-ENCL-IWLCR6 |
Power Handling (Max): (1.33x RMS): 200W Power Handling (RMS): 150W |
Frequency Response |
Cutout Dimensions (W x H) |
Dimensions (W x H x D) |
Mounting |
Operating Temperature |
Weight |
Crossover Frequency |
Speaker Dispersion Angle |
Nominal Impedance |
Sensitivity |
Tweeter |
Woofer |
Mounting Depth |
Optimal Air Volume Behind Speaker |
NCB Size |
Enclosure |
Power Handling |
This Limited Warranty runs for a period of ten (10) years for indoor speakers, three (3) years for Triad powered subwoofers, subwoofer amplifiers and outdoor speakers, five (5) years for all Triad PAMP V2 Amplifiers and two (2) years for all other Triad electronics, provided that Triad Distributed Audio Series 1, Series 2, or Series 3 branded speakers will have a limited lifetime warranty, except for the grill, which is warranted for five (5) years. The terms of our limited warranties can be found here.
