These Episode® 500-Series Thin Bezel In-Ceiling Speakers have it all. They expertly blend contemporary aesthetics with incredible performance to create a system that appeals to both audiophiles and designers alike. Take advantage of their Polypropylene woofers, custom 2nd-order crossover network, tweeter compensation switches, and a whole lot more. The end result is speakers that deliver precise, detailed sound and impressive low frequency response – in a design that virtually disappears into the ceiling.
These Episode® 500-Series Thin Bezel In-Ceiling Speakers have it all. They expertly blend contemporary aesthetics with incredible performance to create a system that appeals to both audiophiles and designers alike. Take advantage of their Polypropylene woofers, custom 2nd-order crossover network, tweeter compensation switches, and a whole lot more. The end result is speakers that deliver precise, detailed sound and impressive low frequency response – in a design that virtually disappears into the ceiling.
Builders and designers will love how the ES-500T's thin bezel look matches the rest of the décor, such as contemporary low-voltage and "high-hat" lighting. Combined with a bezel that’s up to 1” smaller in diameter than the competition, these speakers virtually disappear into the ceiling. Installation is clean and effortless thanks to a magnetic grill that quickly snaps into place using strong neodymium magnets.

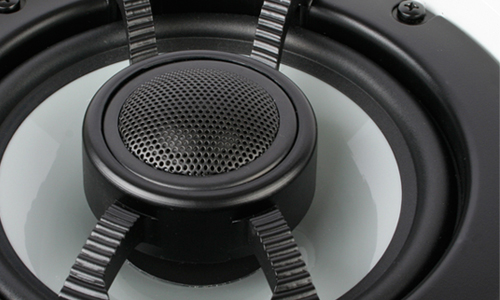

In this 500-series model, our speaker designers have combined the low frequency responsiveness of a 6.5" or 8” injection-molded polypropylene woofer with a 1" ferro-fluid cooled, fabric dome tweeter. Bringing it all together is a custom 2nd-order crossover network that ensures a precise performance every time.

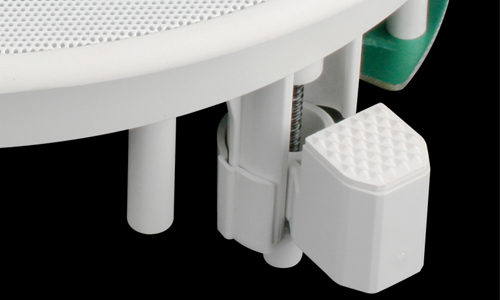

With competitive products, slight variations in sheetrock can sometimes leave a gap between the grill and the ceiling. Our unique bezel design and oversized dog toggles close the gap, keeping the speaker firmly planted to the ceiling. Gold-plated spring terminals mean that even if you're on a ladder, you can still connect the wires effortlessly.

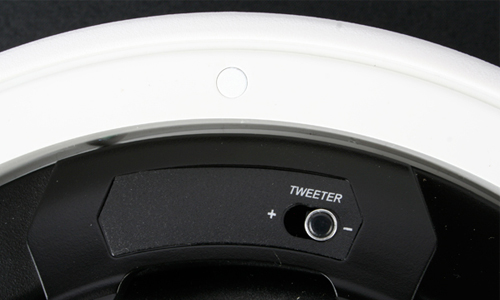

With the ES-500T, you can quickly and independently adjust each tweeter's output by 3db to compensate for rooms with more or less sound absorbing materials.

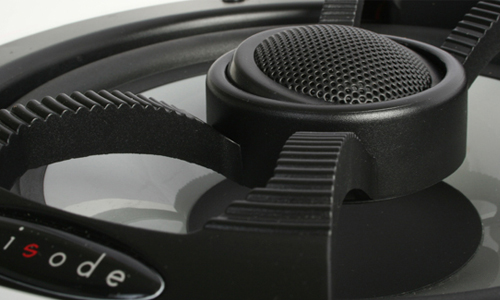

Lots of tweeters can be aimed, but ours can be aimed with ease.
| ES-500T-IC-8 | ES-500T-IC-6 |
|---|---|
45 Hz - 20 kHz |
50 Hz - 20 kHz |
Tweeter +0dB/-3dB |
Tweeter +0dB/-3dB |
White |
White |
Gold Plated Push Terminals |
3 Sets of Gold-Plated Push Terminals |
4.2" |
3.5" |
4.5" |
3.9" |
10.6" |
8.8" |
9.5" |
7.7" |
Pair |
Pair |
5.8 lbs |
3.4 lbs |
3.0 kHz |
3.3 kHz |
Powder Coated, Steel Microperf (Magnetic) |
Coated, Steel Microperf (Magnetic) |
6 Ohm |
6 Ohm |
450W |
275W |
180W |
110W |
87 dB |
86 dB |
1" Fabric Dome, Ferrofluid Cooled, 1" Fabric Dome, Ferrofluid Cooled, Neo-Magnet |
1" Fabric Dome, Ferrofluid Cooled, 1" Fabric Dome, Ferrofluid Cooled, Neo-Magnet |
Nomex Spider & High Temp Voice Coil |
Nomex Spider & High Temp Voice Coil |
8" Polypropylene Injection Cone |
6-1/2" Polypropylene Injection Cone |
Frequency Response |
Adjustments |
Color |
Connectors |
Cutout Depth |
Depth |
Diameter |
Cutout Diameter |
Sold As |
Weight |
Crossover Frequency |
Speaker Grille |
Nominal Impedance |
Power Peak |
Power RMS |
Sensitivity |
Tweeter |
Voice Coil |
Woofer |
This Episode® product has a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
