With 5MP of resolution, the Luma 710-series bullet analog cameras will stun you with their ultra-sharp picture quality. Starlight and 40 meters of IR Night Vision mean your customers can be aware of what’s happening on their property at all hours, day or night.
With 5MP of resolution, the Luma 710-series bullet analog cameras will stun you with their ultra-sharp picture quality. Starlight and 40 meters of IR Night Vision mean your customers can be aware of what’s happening on their property at all hours, day or night. Its motorized varifocal lens gives you the capability to easily adjust the camera from the ground, making installation stress-free. Local video and power test ports allow you to use a CCTV tester to power the camera and verify its aim.
5MP delivers footage that will wow your customers. With resolution even higher than 1080p, our 710 series cameras offer among the best analog video quality.
Great daytime shots are nice, but Starlight improves nighttime performance – a critical time for capturing surveillance footage. These cameras automatically adapt to changes in light. With enough ambient light, Starlight technology can provide a detailed color image, improving nighttime clarity.

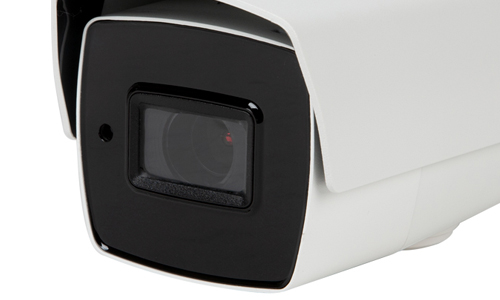

Luma bullets offer ease of install and are less susceptible to IR glare from dirt and dust that might accumulate over time, making them easy to care for.
These cameras are outdoor-rated and perform in extreme low-temperature environments – down to -40° Fahrenheit, as long as they’re continually powered.
Once the camera is properly aimed, you don’t have to worry about adjusting the focus from the ladder. The motorized varifocal lens can adjust the zoom and focus right from your computer or DVR, making installation a breeze.
When there’s not enough light for Starlight, this camera’s powerful IR lights up even the darkest night. With up to 40 meters or 130 feet of IR, it eliminates overexposure in dim settings and illuminates the subject, making sure your customers don’t miss a thing.
Need to fine-tune OSD settings after dark, but don’t want to roll a truck? Just log in remotely to the DVR. Our recorders feature built-in control thanks to HD-TVI technology.
WDR, or Wide Dynamic Range, autocorrects images taken in inconsistent lighting and balances them into a clear picture.
In addition to 12VCD, this camera also supports 24VAC power, so you can easily run your power cables over a longer distance.
We build our camera housing so that it can withstand the elements. You can rest assured that a strong storm or heavy rains will not impact the camera’s performance.
| LUM-710-BUL-AH-GR | LUM-710-BUL-AH-WH |
|---|---|
CE / FCC / UL |
CE / FCC / UL |
92 mm × 89 mm × 269.6 mm |
92 mm × 89 mm × 269.6 mm |
Max. 9W |
Max. 9W |
16:9 |
16:9 |
Yes |
Yes |
40m |
40m |
Yes |
Yes |
No |
No |
Yes |
Yes |
IP66 |
IP66 |
850nm |
850nm |
IP66 |
IP66 |
Horizontal: 102°-31° |
Horizontal: 102°-31° |
Power 12 VDC Support: Yes Power 24 VAC Support: Yes |
Power 12 VDC Support: Yes Power 24 VAC Support: Yes |
Yes |
Yes |
Gray |
White |
5MP (2560 x 1944 resolution) |
5MP (2560 x 1944 resolution) |
2.8 mm to 12 mm motorized vari-focal lens |
2.8 mm to 12 mm motorized vari-focal lens |
Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
D WDR |
D WDR |
3D-DNR |
3D-DNR |
-40 to +140° |
-40 to +140° |
Certifications |
Dimensions (W x H x D) |
Power Consumption |
Aspect Ratio |
Backlight Compensation |
IR Range |
Mirror Mode |
Sense-Up (Elec. Shutter) |
Smart IR |
Weather Rating |
IR Wavelength |
Outdoor Rating |
Field of View |
Power |
IR Auto Switch |
Color |
Image Sensor |
Lens |
Minimum Illumination |
WDR |
DNR |
Operating Temperature |
Luma Surveillance™ Analog cameras have a 5-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, disassembled, or improperly installed. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
