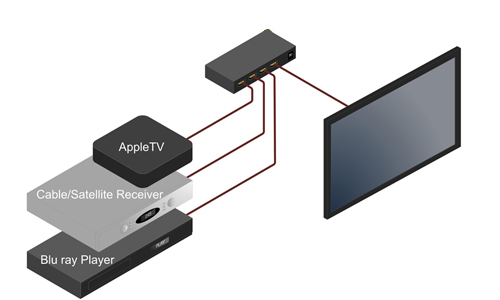

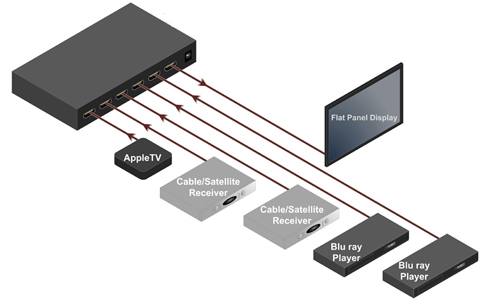

Our Binary™ HDMI Switchers with Single HDMI Output are available in 5x1 and 3x1 models, they’re small, simple, and get the job done by switching multiple HDMI 3D inputs to one output. Use them in a bedroom or den where your HDMI sources are limited by the number of inputs on the TV.
Our Binary™ HDMI Switchers with Single HDMI Output are available in 5x1 and 3x1 models, they’re small, simple, and get the job done by switching multiple HDMI 3D inputs to one output. Use them in a bedroom or den where your HDMI sources are limited by the number of inputs on the TV.

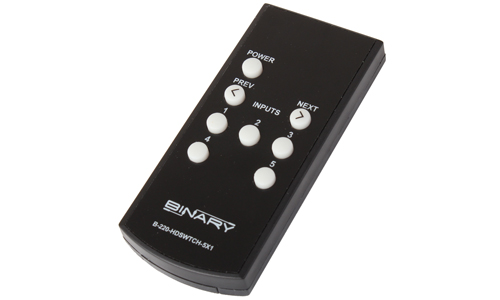

Quickly switch between inputs using the supplied IR remote control or the push button on the front. If you're using a universal remote or a control system, check out the discrete IR codes for switching inputs and powering the unit on/off – you can find them on the Support tab.

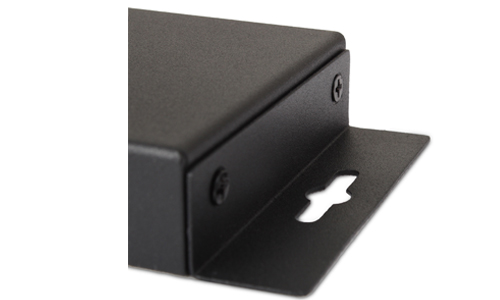

A smart design featuring connectors on the back and LEDs on the front allows this switcher to support a clean, convenient install. Plus, it’s equipped with rubber feet and mounting ears, allowing you to easily secure it on a shelf or mount it on a wall.
| B-220-HDSWTCH-5x1 | B-220-HDSWTCH-3x1 |
|---|---|
HDMI Type A 19-pin |
HDMI Type A 19-pin |
Surround Sound (up to 7.1ch) DTS-HD Master Audio and TrueHD high bitrate audio |
Surround Sound (up to 7.1ch) DTS-HD Master Audio and TrueHD high bitrate audio |
Human Body (air gap): 15kV Human Body (contact): 8kV |
Human Body (air gap): 15kV Human Body (contact): 8kV |
6.75 Gbps |
6.75 Gbps |
CE, FCC, RoHS |
CE, FCC, RoHS |
Black |
Black |
6.38" x 1.01" x 3.51" |
4.45" x .78" x 2.07" |
Metal |
Metal |
3.5W Max |
3.5W Max |
5V DC 1A |
5V DC 1A |
Each |
Each |
1.88 lbs |
0.82 lbs |
VESA up to 1920x1200 HDTV up to 1080p |
VESA up to 1920x1200 HDTV up to 1080p |
HDMI Connector Type |
Supported Formats |
ESD Protection |
Supported Video Bandwidth |
Certifications |
Color |
Dimensions (W x H x D) |
Construction |
Power Consumption |
Line Voltage |
Sold As |
Weight |
Supported Resolutions |
This Binary™ product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
