The Pioneer PE-VSX-1130-K is creating a new reality in home theater. This 7.2-channel AV receiver delivers 165 watts per channel or 95 + 95 Watts of pristine audio reproduction.
The Pioneer VSX-1130-K is creating a new reality in home theater. This 7.2-channel AV receiver delivers 165 watts per channel (6 ohms 1 kHz 1 % 1ch Driven) or 100 watts per channel (20Hz – 20kHz, 8 ohms, 2ch Driven) of pristine audio reproduction. Plus, it offers Dolby Atmos, 4K 60P Ultra HD Upscaling and Pass-through, HDCP 2.2, DSD Playback, Subwoofer EQ, Dual Subwoofer Pre-out, Built-in AVNavigator, and it’s Spotify® Connect Ready. Additional highlights include 7 HDMI Inputs with 2 Outputs, an energy-saving ECO Mode, and a host of networked entertainment options.

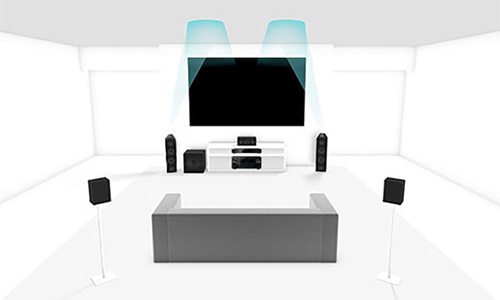

With Dolby Atmos, sound comes from all directions, including overhead, to create a truly immersive experience with astonishing clarity, richness, and depth. The specific sounds of people, music, and action can be placed and moved all around you in three-dimensional space, so you feel like you’re inside the scene.

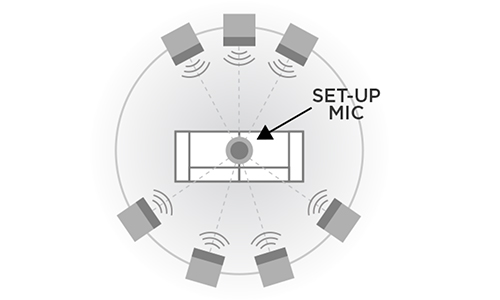

MCACC Pro takes MCACC (Multi-Channel Acoustic Calibration) a step further. In addition to automatically compensating for speaker size, level, and distance to the listening position, MCACC Pro analyzes and corrects the phase and group delay characteristics that are caused by the filtering systems in the speakers.
With the power of Internet radio, the VSX-1130-K gives you nearly unlimited listening options. Enjoy thousands of Internet radio stations around the world with vTuner and access all your favorite tunes from Pandora and Spotify Connect — complete with on-screen album art and music information.
The VSX-1130-K now incorporates the ESS9006 Sabre® Premier Audio DAC (Digital-to-Analog Converter). Typically found on AV receivers twice as expensive, this new DAC provides superior Digital-to-Analog conversion with far less jitter than other DACs.
The VSX-1130-K gives you two ways to enjoy your music wirelessly from your iPhone®, Android™, PC, laptop or any other compatible sources via Wi-Fi and Bluetooth technology. Plus, the VSX-1130-K is equipped with dual antennas providing Dual Band Wi-Fi (2.4GHz and 5GHz) for a much greater network range and throughput.
With Pioneer's free app, you can use your iPod touch, iPhone or iPad as a remote to control basic functions. The app is also compatible with Android. Enjoy smooth control from your device, with support for 8 languages. It is freely available from the App Store or via Google Play. *Device needs to be connected to a home LAN network in a wireless LAN environment.
P-VSX-1130-K |
---|
7 |
HDCP: 2.2 Dolby Atmos: Yes Dolby True HD: Yes with Loudness Management Dolby Digital Plus: Yes DTS-HD Master Audio: Yes DTS Neo:6: Yes HDMI SACD Transfer: Multi-Channel |
17.1" x 6.6" x 14.3" With WiFi Antenna Up: 17.1" x 9.4" x 14.3" |
AirPlay: Yes HTC Connect: Yes Made for iPhone & iPod: Yes iOS/Androp Remote Control APP: iControlAV5 DLNA 1.5: Yes Pandora Internet Radio: Yes vTuner Internet Radio: Yes |
Front Panel: Brushed Speaker Terminals: 9 Large |
550 W/0.1 W (standby) |
21.6 lb |
Watts per Channel (20Hz-20kHz,.08%THD@8ohm 2ch Driven): 100 Watts Watts per Channel (1kHz,1%THD@6ohm 1ch Driven): 165 Watts |
Digital Core DPS Engine: Texas Instruments Aureus Audio DACs: ESS SABRE Premier, 192K/24Bit Audio Processing: 24Bit iPod Digital Audio: Yes Music File Playback: MP3, WMA, AAC, Apple Lossless*, WAV*, FLAC*, AIFF, DSD via USB and Network (*up t |
Phase Control: Auto Phase Control Plus MCACC: Pro MCACC Memory: 6 Standing Wave Control: Yes EQ Bands: 9-Band Symmetric EQ: Yes X-Curve: Yes Distance Adjustment: 1/2 inch Polarity Check: Yes Auto Subwoofer Crossover: Yes |
Auto Surround: Yes Stream Direct: Yes (Direct, Pure Direct) Advanced Surround: 10+1 Front Stage Surround Advance: Yes Headphone Surround: Yes Virtual Speakers: Surround Back/Height/Wide |
DSD to PCM Converter: Multi-Channel Auto Level Control: Multi-Channel Dialog Enhancement: Yes Auto Sound Retriever: Yes Sound Retriever AIR: Yes Digital Noise Reduction: Yes Tone Control: Multi-Channel Sound Delay: Yes (800 ms) Sp |
4K Ultra HD Pass-Through: Yes 4K Ultra HD Video Scaler: Yes 3D Ready: Yes Audio Return Channel: Yes HDMI Standby Through: Yes with Input Switch/Last Memory HDMI 36-bit Deep Color: Yes HDMI x.v. Color: Yes HDMI to HDMI Video Scaler: 4 |
HDMI Input/Output: 7 In (6 Rear, 1 Front)/2 Out MHL 2: 1 (Rear) WiFi Built In: Yes Bluetooth Built In: Yes Component Video Input/Output: 1 In (assignable) Composite A/V Input/Output: 2 In iPod/iPhone: Front USB USB Terminal: Front US |
AVNavigator: Built In On-Screen Display: Icon Based GUI Auto Power Down: Yes ECO Mode: Yes Multi-Room & Source Output: HDMI HDZone Audio & Video IR Serial Remote In/Out: 1 In/1 Out FL Dimmer: Yes Function Rename: Yes Remote: Learn |
Channels |
Supported Formats |
Dimensions (W x H x D) |
Features |
Construction |
Power Consumption |
Weight |
Power Output |
Decoders |
Soundfield Calibration |
Listening Modes |
Audio Features |
Video Processing |
Connectivity |
Installation |
